Application:
Mobile Phone / Pad
Desktop / Notebook / Ultrabook
Features:

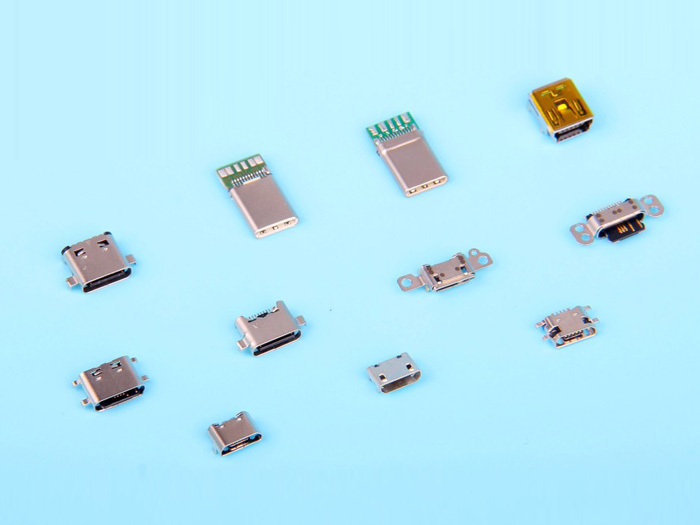

SMT / Hybrid connectors
Plug with PCB (PTC option)
Mechanical:
Destroy Strength: up to 75N for 4 direction
Electrical:

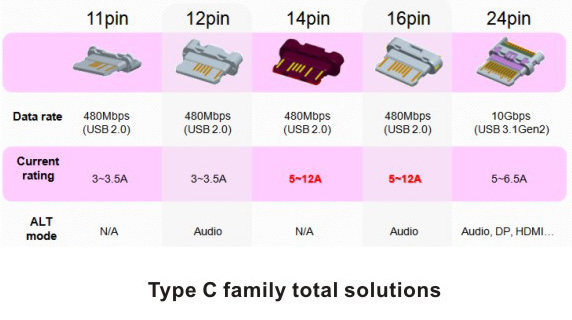

Current rating: 3A- 12A
LLCR: Contact Resistance Max. 30mΩ
Insert Molding Product Advantage:
Multi-strips molding
Length 6.5mm Min
Prevent solder tail from backward and lifted
Flux splattering prevention design
Short circuit prevention design
Functional:
USB 2.0/3.0
USB 3.1 Gen 1 / Gen 2
Enhanced power delivery options
---Extended 8A current rages plus USB PD
Docking support
---USB PD-based interface configuration option.
